Large circle double tie type automatic meter cutting wire stripping and winding machine, as well as automatic tying machines, wire/cable bundle tying machines, and wire tying machines are available.
Applicable wire diameter 2-5mm
Cutting length 3-40m
Cutting line length accuracy: ±2mm/m
Round tie appearance single/double tie strap, split end, and end, diagonal side
The inner diameter of the circle is 300-400mm (adjustable)
Binding diameter ≤40mm
Desquamation mode complete desquamation at both ends
Head and tail peeling length 20-50mm (adjustable)
Head retention length 250-300mm (adjustable)
Tail length 300-400mm (random value within the interval)
Production efficiency: 180-300pcs /H (2-40m)
Applicable binding tape: Coated iron core ≤ 7.5kg/roll
Power supply: NATIONAL standard 220V/50Hz
Machine power: 4.5KW/H
Machine size: about 2500L*1100W*1850Hmm
Machine weight: about 1000KG
Main accessories:
Cylinder: Yadeke cylinder and solenoid valve
Motor: Winding main servo motor 1500W Turbot
Motor: take line translation servo motor Turbot 750W
Motor: online translation servo motor Dongling 750W
Motor: winding up and down 57-step thunder race
Motor: Twisting and strapping belt spitting belt 57 stepper motor thunder race
Motor: storage tape motor 6W
Slide block: take line translation double slide block
Guide rail: lower paw translation double guide rail
PLC: vigor
Screen: Dimension control 7"
Power supply: clear weft
Frame: the iron frame is painted blue and white
Safety protection: stop when the door opens
Lack of material alarm: three-color lamp buzzes
Frame: the appearance of iron frame is painted blue and white

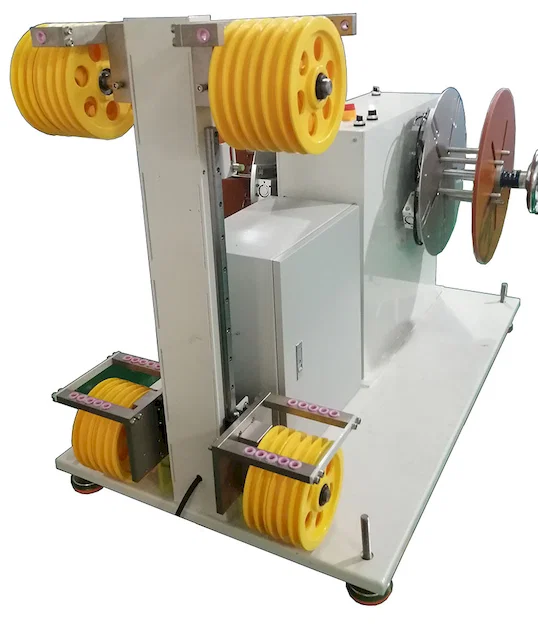

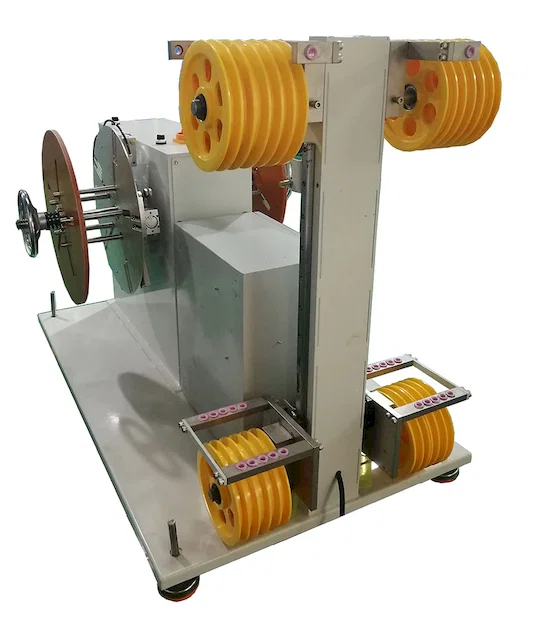

Supporting high-speed active winding machine CY-P01-150KG features:
Automatic frequency conversion, step-less variable speed,
With line storage function
Tension function
Deceleration function
Incoming material capacity ≤100KG
Incoming wire tray inner hole diameter 60-80mm
The outer diameter of the incoming hollow reel is ≤630mm
The thickness of the incoming wire coil is ≤500mm
Machine power: 2.2KW
Machine size: about 1450L*800D*980Hmm
Machine weight: about 150KG
